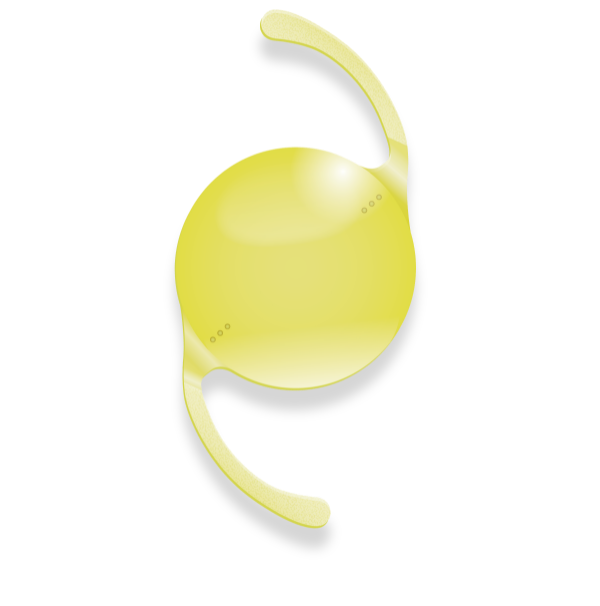

Vivinex™ Toric IOL

References Spec SheetSpecification Go Back Go Back
Please download to view the spec sheet.
Download
Vivinex™ Toric multiSert™
Model nameXY1A-SP
Optic designBiconvex with square, thin and textured optic edge
Anterior: Aspheric design
Posterior: Toric design
Optic & haptic materialsHydrophobic acrylic Vivinex™ with UV- and blue light filter
Haptic designTextured-rough haptic surface
Diameter (optic/OAL)6.00 mm / 13.00 mm
Power+10.00 to +30.00 D (in 0.50 D increments)
Cylinder power at IOL plane1.00 to 6.00 D (T2 to T9)
T2 to T3 in 0.50 D increments
T3 to T9 in 0.75 D increments
Nominal A-constant*118.9
Optimized constants†Haigisa0 = -1.0459a1 = 0.2547a2 = 0.2291
Hoffer QpACD = 5.700
Holladay 1sf = 1.928
SRK/TA = 119.193
InjectormultiSert™ preloaded
Front injector tip outer diameter1.70 mm
Recommended incision size2.20 mm
Model
XY1A-SP		Cylinder power
at IOL plane		Cylinder power at corneal plane1
T21.00 D0.69 D
T31.50 D1.04 D
T42.25 D1.56 D
T53.00 D2.08 D
T63.75 D2.60 D
T74.50 D3.12 D
T85.25 D3.64 D
T96.00 D4.17 D



1Based on an average pseudophakic human eye.



*The A-constant is presented as a starting point for the lens power calculation. When calculating the exact lens power, it is recommended that calculations be performed individually, based on the equipment used and operating surgeon’s own experience.


†These optimized constants for the calculation of intraocular lens power published by IOLCon on their website: https://iolcon.org are calculated from 2,857 and 2,884 clinical results for Vivinex™ Models XC1/XY1 and XC1-SP/XY1-SP as of June 10, 2024. These constants are based on actual surgical data and are provided by IOLCon as a starting point for individual constant optimizations. The information available on the website is based on data originating from other users and not by HOYA Surgical Optics (“HSO”). HSO therefore does not warrant the correctness, completeness and currentness of the contents on the said website.



Disclaimer

Information contained is intended for health care professionals. For a full list of indications and contra indications please refer to the Instructions For Use. Some of the products and/or specific features as well as the procedures featured in this document may not be approved in your country and thus may not be available there. Please contact our regional representative regarding individual availability in your country. HOYA and Vivinex are trademarks of the HOYA Corporation or its affiliates. ©2024 HOYA Medical Singapore Pte. Ltd. All rights reserved.

References

1. Schartmueller, D. et al. (2019): True rotational stability of a single-piece hydrophobic intraocular lens. In: The British journal of ophthalmology 103 (2), p. 186–190.

2. Brar et al. (2024): Clinical outcomes and rotational stability following implantation of a monofocal toric IOL with textured haptics in normal versus high
axial lengths. In: Journal of Cataract & Refractive Surgery, 50(7):p 718-723, July 2024.

3. HOYA data on file. CTM-23-027, HOYA Medical Singapore, Pte. Ltd, 2023.

4. Auffarth, G. U et al. (2023). Randomized multicenter trial to assess posterior capsule opacification and glistenings in two hydrophobic acrylic intraocular lenses. In: Scientific reports, 13 (1), 2822.

5. Tandogan, T. et al. (2021): In-vitro glistening formation in six different foldable hydrophobic intraocular lenses. In: BMC Ophthalmol 21, 126.

6. Perez-Merino, P.; Marcos, S. (2018): Effect of intraocular lens decentration on image quality tested in a custom model eye. In: Journal of cataract and refractive surgery 44 (7), p. 889–896.

7. Chandra et al. (2022): Effect of decentration on the quality of vision: comparison between aspheric balance curve design and posterior aspheric design intraocular lenses. Journal of cataract and refractive surgery 48 (5), p. 576-583.

8. Thakur, A. et al. (2024): Effect of decentration on the quality of vision in two aspheric posterior chamber intraocular lenses: A contralateral eye study. In: Indian J Ophthalmol. 72 (4), p. 558–564.

9. Leydolt, C. et al. (2020): Posterior capsule opacification with two hydrophobic acrylic intraocular lenses: 3-year results of a randomized trial. In: American journal of ophthalmology 217 (9), p. 224-231.

10. Giacinto, C. et al. (2019): Surface properties of commercially
available hydrophobic acrylic intraocular lenses: Comparative study.In: Journal of cataract and refractive surgery 45 (9), p. 1330–1334.

11. Werner, L. et al. (2019): Evaluation of clarity characteristics in a new hydrophobic acrylic IOL in comparison to commercially available IOLs. In: Journal of cataract and
refractive surgery 45 (10), p. 1490–1497.

12. Nanavaty, M. et al. (2019): Edge profile of commercially available square-edged intraocular lenses: Part 2. In: Journal of cataract and refractive surgery 45 (6), p. 847–853.

13. Matsushima, H. et al. (2006): Active oxygen processing for acrylic intraocular lenses to
prevent posterior capsule opacification. In: Journal of cataract and refractive surgery 32 (6), p. 1035–1040.

14. Farukhi, A. et al. (2015): Evaluation of uveal and capsule biocompatibility of a single-piece hydrophobic acrylic intraocular lens with ultraviolet-ozone treatment on the posterior surface. In: Journal of cataract and refractive surgery 41 (5), p. 1081–1087.

15. Eldred, J. et al. (2019): An In Vitro Human Lens Capsular Bag Model Adopting a Graded Culture Regime to Assess Putative Impact of IOLs on PCO Formation. In: Investigative ophthalmology & visual science 60 (1), p. 113–122.

Our Vivinex™

Toric IOL

Hoya Surgical Optics Vivinex Toric IOL

Proven benefits for you and your patients:

Clinically proven rotational stability. More than 96% of implanted lenses rotated ≤5° including eyes with high axial lengths1,2,3

Glistening-free hydrophobic acrylic IOL material 4,5

Incorporates the Vivinex proprietary aspheric optic design which partially compensates for corneal spherical aberration and is more tolerant to sources of coma than standard aspheric designs 6,7,8

Active oxygen processing treatment, a smooth surface, and square optic edge to reduce PCO4,9,10,11,12,13,14,15

References

*Third-party trademarks used herein are the property of their respective owners.

  1. Schartmüller D, et al. True rotational stability of a single-piece hydrophobic intraocular lens. Br J Ophthalmol. 2019;103(2):186–190.
  2. Schartmüller D. Comparison of Long-Term Rotational Stability of Three Commonly Implanted Intraocular Lenses. Am J Ophthalmol. 2020;220:72–81.

Raising the bar

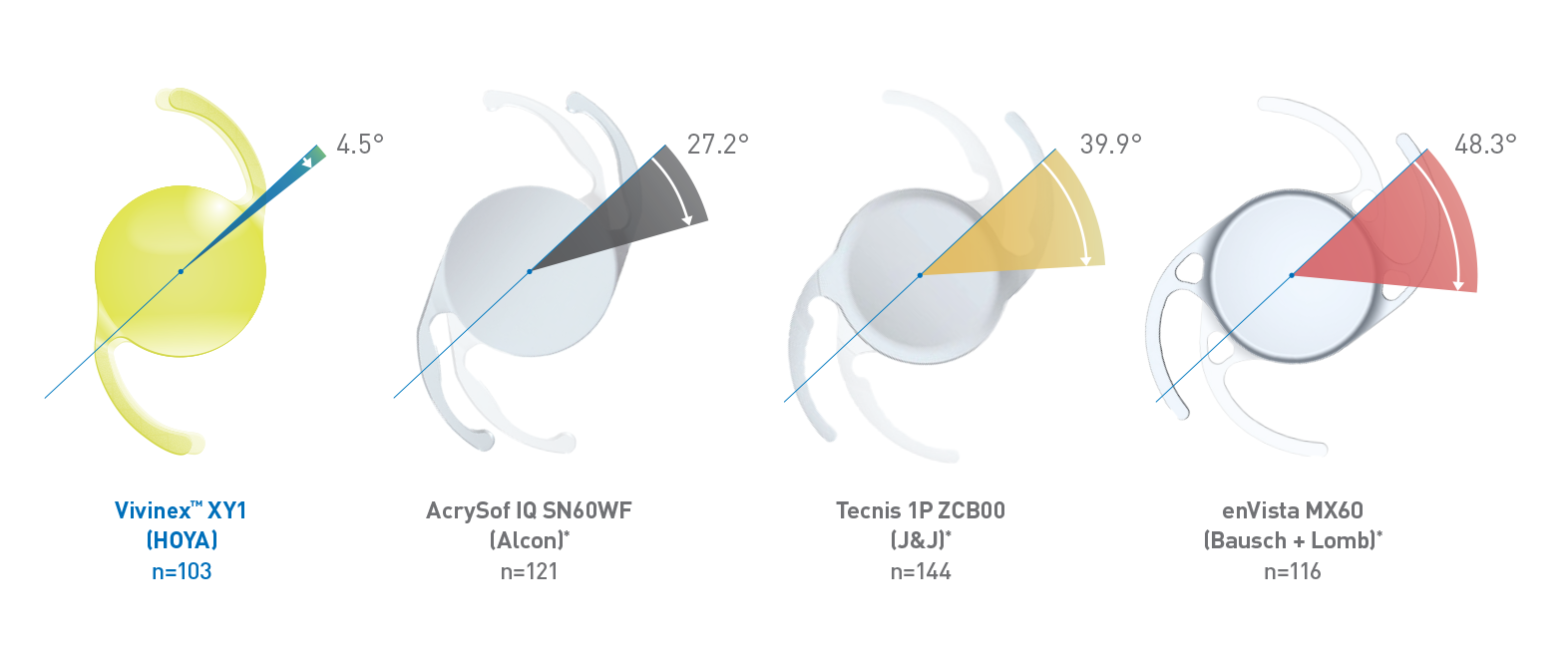

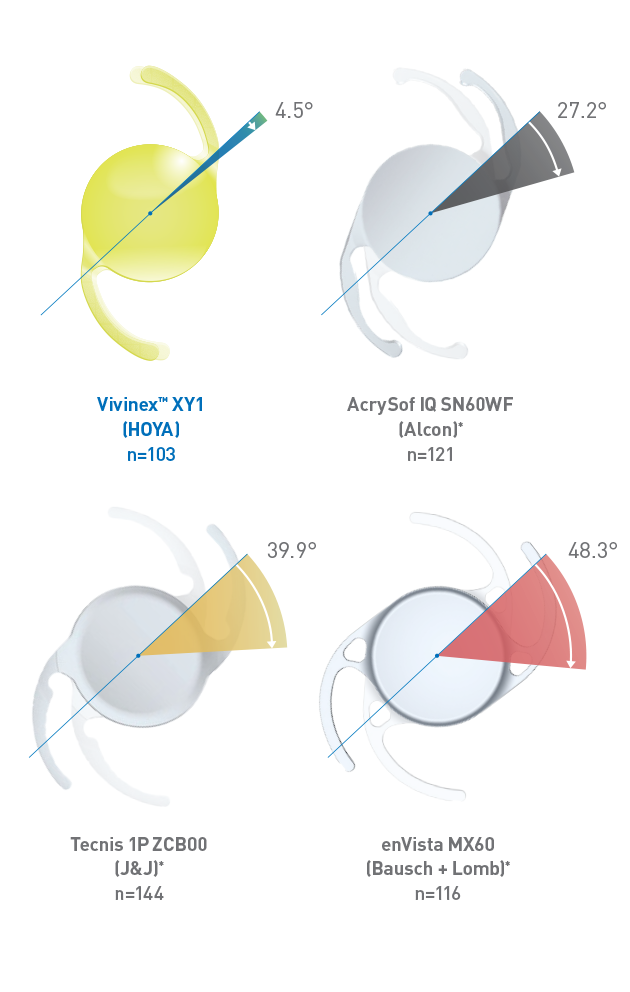

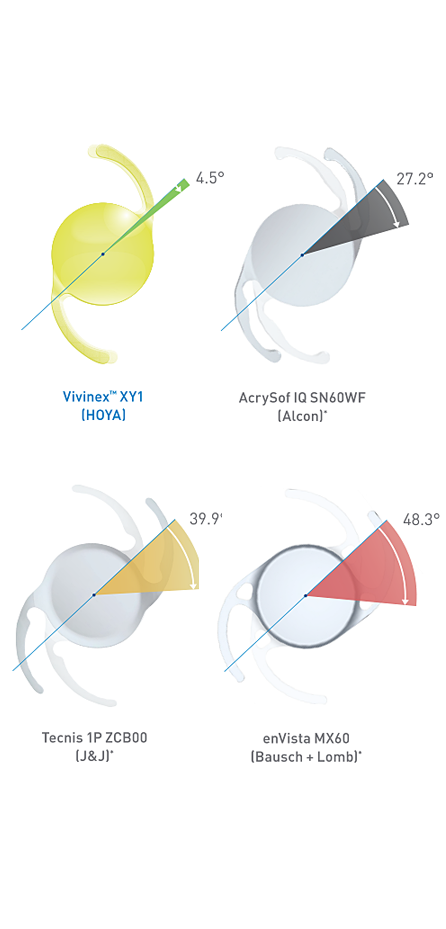

Maximum rotation values observed in the first week following surgery1,2

Hoya Surgical Optics Vivinex Toric IOL Hoya Surgical Optics Vivinex Toric IOL

Pinch to zoom image

Reliable outcomes through outstanding rotational stability

Compared with AcrySof®, Tecnis®, and enVista®,* Vivinex™ demonstrated the least amount of rotation in the first week post-surgery.1,2

References

*Third-party trademarks used herein are the property of their respective owners.

  1. Schartmüller D, et al. True rotational stability of a single-piece hydrophobic intraocular lens. Br J Ophthalmol. 2019;103(2):186–190.
  2. Schartmüller D. Comparison of Long-Term Rotational Stability of Three Commonly Implanted Intraocular Lenses. Am J Ophthalmol. 2020;220:72–81.

Setting the standard for rotational stability

Hoya Surgical Optics Vivinex Toric IOL

Pinch to zoom image

Distribution of absolute rotation between end of surgery and 6 months postoperative.

100% of VivinexTM Toric IOLs had less than 10° of rotation between the end of surgery and 6 months postoperative.1

References

*Third-party trademarks used herein are the property of their respective owners.

  1. Miyata A, et al. Clinical and experimental observation of glistening in acrylic intraocular lenses. Jpn J Ophthalmol. 2001;45(6):564-569.
  2. Tandogan, T. et al. In-vitro glistening formation in six different foldable hydrophobic intraocular lenses. In BMC Ophthalmol. 2021; 21, 126.
  3. HOYA data on file. DoF-CTM-21-002, HOYA Medical Singapore Pte. Ltd, 2021.

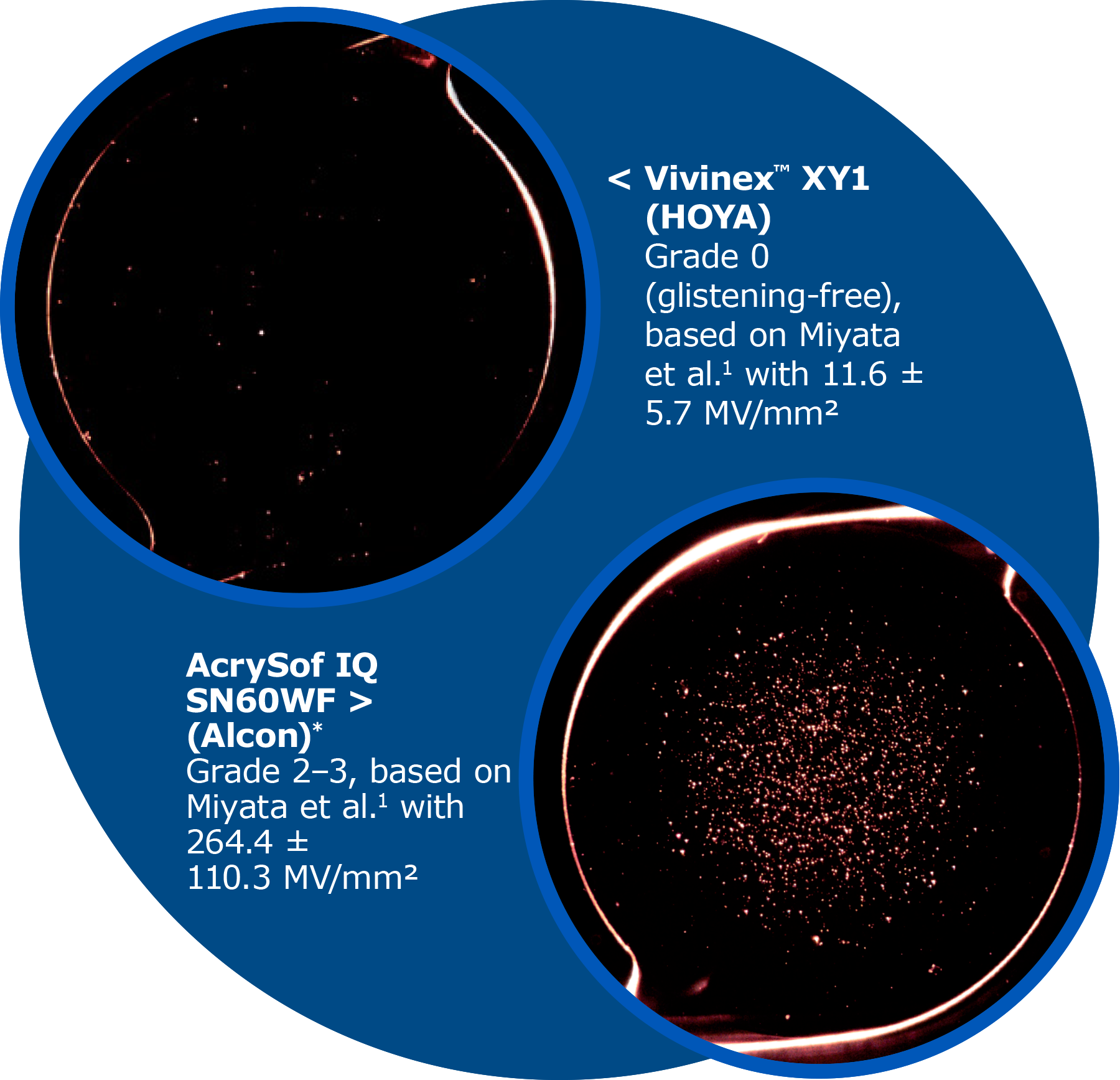

Glistening-free clarity

Hoya Surgical Optics iSert IOL

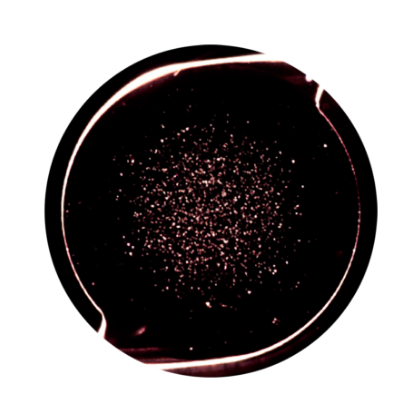

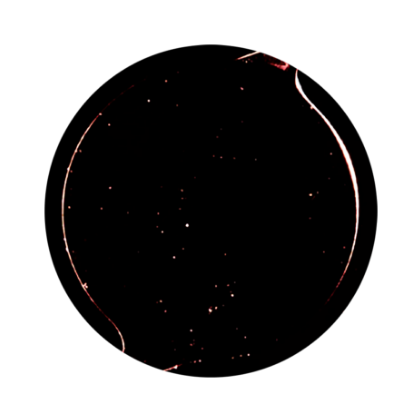

In vitro glistening formation at 14x magnification2

Vivinex™ is rated glistening-free with 97.0% of lenses demonstrating <10 glistenings per 10mm x 2mm field and showing significantly less glistenings than AcrySof IQ SN60WF* (p<0.0001).3

References
  1. Pérez-Merino P, Marcos S. Effect of intraocular lens decentration on image quality tested in a custom model eye. J Cataract Refract Surg. 2018;44(7):889-896.

More than meets the eye

Watch how Vivinex™ improves image quality and reduces coma compared with other traditional negative aspheric IOLs.1

Play
References
  1. De Giacinto C, et al. Surface properties of commercially available hydrophobic acrylic intraocular lenses: Comparative study. J Cataract Refract Surg. 2019;45(9):1330-1334.
  2. Werner L, et al. Evaluation of clarity characteristics in a new hydrophobic acrylic IOL in comparison to commercially available IOLs. J Cataract Refract Surg. 2019;45(10):1490-1497.
  3. HOYA data on file. DoF-CTM-21-002, HOYA Medical Singapore Pte. Ltd, 2021.
  4. Leydolt C, et al. Posterior Capsule Opacification With Two Hydrophobic Acrylic Intraocular Lenses: 3-Year Results of a Randomized Trial. Am J Ophthalmol. 2020;217:224-231.
  5. Eldred JA, et al. An In Vitro Human Lens Capsular Bag Model Adopting a Graded Culture Regime to Assess Putative Impact of IOLs on PCO Formation. Invest Ophthalmol Vis Sci. 2019;60(1):113-122.
  6. Nanavaty MA, et al. Edge profile of commercially available square-edged intraocular lenses: Part 2. J Cataract Refract Surg. 2019;45(6):847-853.

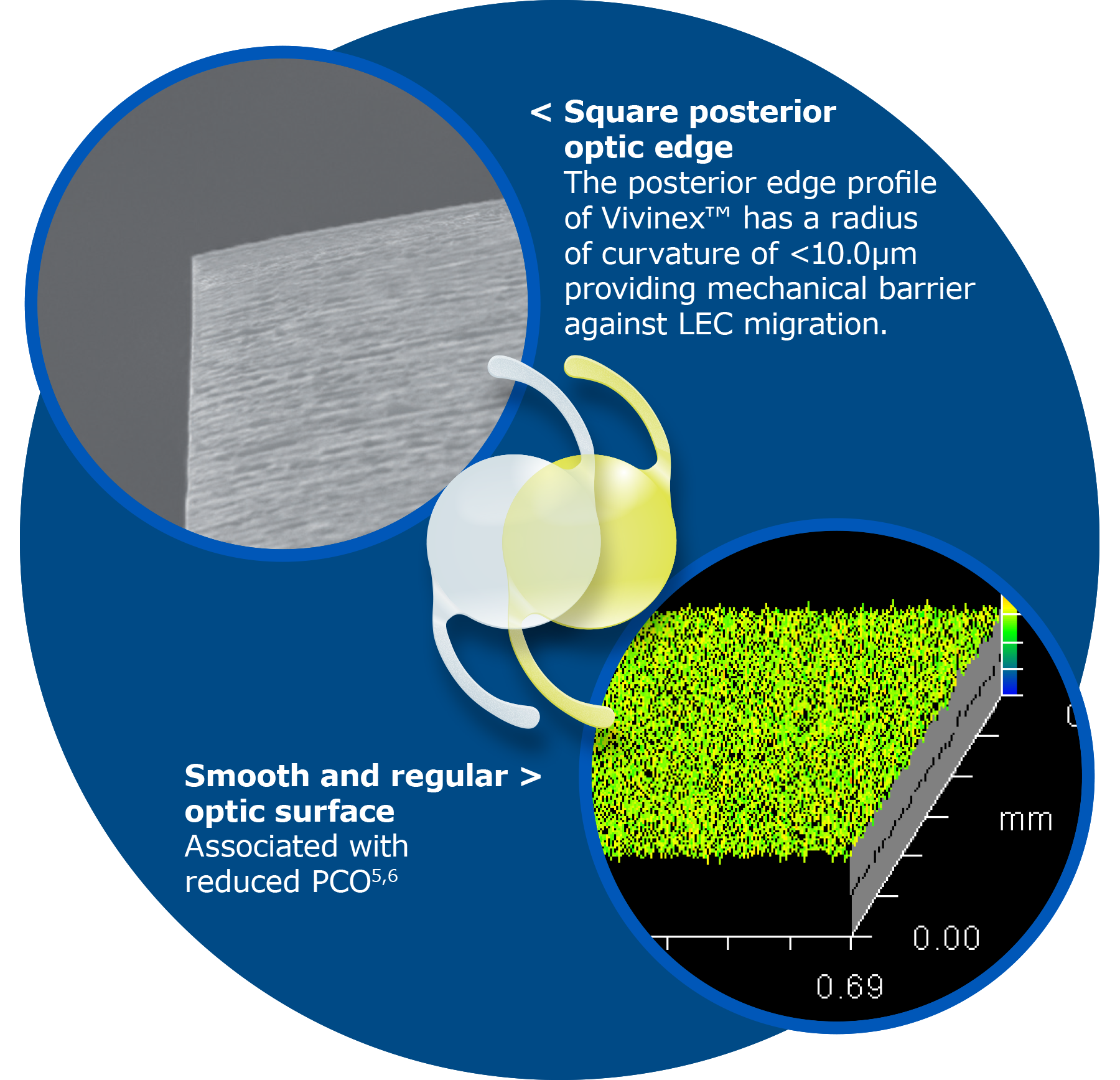

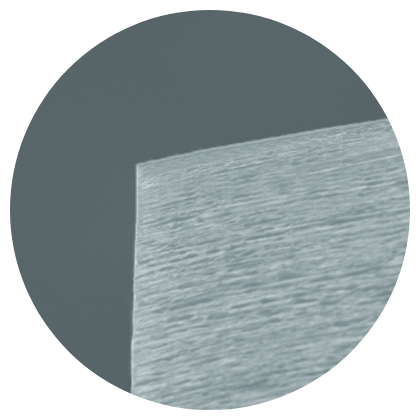

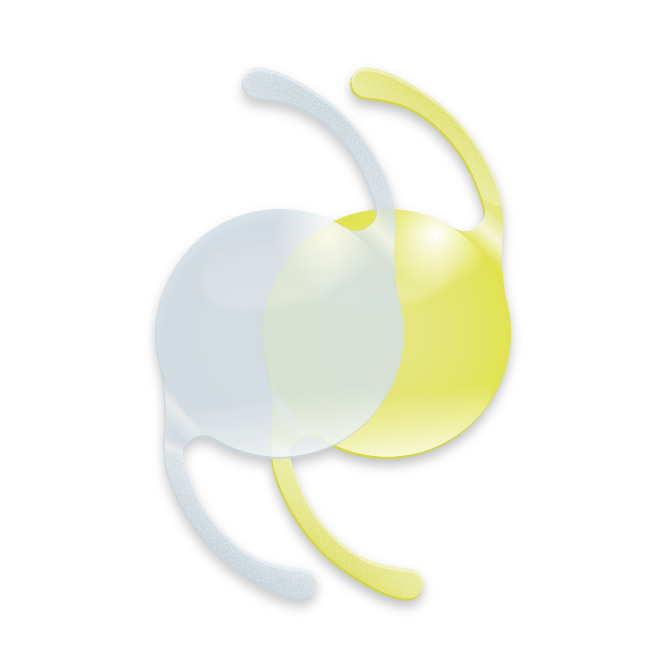

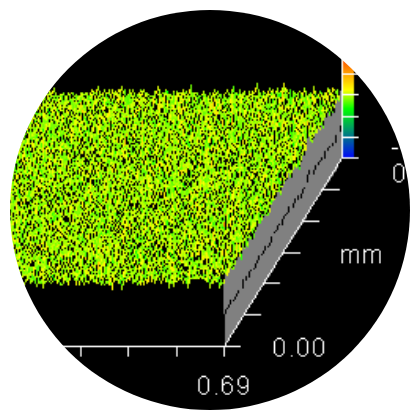

What features of an IOL limit PCO?

Hoya Surgical Optics iSert IOL

Vivinex™ is made from a novel hydrophobic acrylic, using a proprietary manufacturing process that includes a unique, active oxygen posterior surface treatment

Combined with its square edge design and smooth, regular IOL surface, it has been demonstrated to provide a low incidence of PCO in several studies.1-6

References
  1. Matsushima, H. et al. (2006): Active oxygen processing for acrylic intraocular lenses to prevent posterior capsule opacification. In: Journal of cataract and refractive surgery 32 (6), p. 1035–1040.

Want to learn more?

Watch how our active oxygen posterior surface treatment helps to reduce PCO.1

Play
References

Third-party trademarks used herein are the property of their respective owners.

  1. HOYA data on file. DoF-CTM-21-002, HOYA Medical Singapore Pte. Ltd, 2021.
  2. Leydolt C, et al. Posterior Capsule Opacification With Two Hydrophobic Acrylic Intraocular Lenses: 3-Year Results of a Randomized Trial. Am J Ophthalmol. 2020;217:224-231.
  3. De Giacinto C, et al. Surface properties of commercially available hydrophobic acrylic intraocular lenses: Comparative study. J Cataract Refract Surg. 2019;45(9):1330-1334.
  4. Werner L, et al. Evaluation of clarity characteristics in a new hydrophobic acrylic IOL in comparison to commercially available IOLs. J Cataract Refract Surg. 2019;45(10):1490-1497.
  5. Matsushima H,et al. Active oxygen processing for acrylic intraocular lenses to prevent posterior capsule opacification. J Cataract Refract Surg. 2006;32(6):1035-1040.
  6. Farukhi MA, et al. Evaluation of uveal and capsule biocompatibility of a single-piece hydrophobic acrylic intraocular lens with ultraviolet-ozone treatment on the posterior surface. J Cataract Refract Surg. 2015;41(5):1081-1087.
  7. Eldred JA, et al. An In Vitro Human Lens Capsular Bag Model Adopting a Graded Culture Regime to Assess Putative Impact of IOLs on PCO Formation. Invest Ophthalmol Vis Sci. 2019;60(1):113-122.
  8. Nanavaty MA, et al . Edge profile of commercially available square-edged intraocular lenses: Part 2. J Cataract Refract Surg. 2019;45(6):847-853.

Are you interested in clinical proof?

  Vivinex™ XY1 (HOYA)   AcrySof® IQ SN60WF (Alcon)
Objective
(EPCO score)		 0.12 ± 0.19 n = 57 p < .026 0.24 ± 0.46 n = 57
Subjective
(slit lamp score)		 0.30 ± 0.55 n = 67 p = .044 0.48 ± 0.84 n = 67
Nd:YAG rate 0.0% n = 67 p = 1.00 1.5 % n = 67
Objective
(AQUA score)		 0.9 ± 0.8 n = 64 P < .001 1.4 ± 1.1 n = 62
Subjective
(slit lamp score)		 1.4 ± 1.4 n = 64 P = .001 2.3 ± 2.0 n = 62
Nd:YAG rate 11.4% n = 70 p =   .23 18.6 %  n = 70

In a randomized multi-center trial, Vivinex™ demonstrated significantly lower objective and subjective PCO scores compared with AcrySof® IQ after 3 years.1

In a randomized single-center trial, Vivinex™ demonstrated significantly lower objective and subjective PCO scores compared with AcrySof® IQ after 3 years.2

These results confirm low occurrence of PCO in both IOL groups and significantly lower PCO incidence with Vivinex™ compared to AcrySof® IQ.

Hoya surgical optics - Vivinex Toric IOL

These results confirm low occurrence of PCO in both IOL groups and significantly lower PCO incidence with Vivinex™ compared to AcrySof® IQ.

Vivinex™ is made from a novel hydrophobic acrylic, using a proprietary manufacturing process that includes a unique, active oxygen posterior surface treatment. Combined with its square edge design and smooth, regular IOL surface, it has been demonstrated to provide a low incidence of PCO in several studies.1-8
